How to Use FFmpeg for Screen Capture: From Code to Screen Recording

Introduction to FFmpeg screen capture

FFmpeg is a powerful command-line multimedia framework for processing, converting, and streaming audio and video files. It is cross-platform and open-source and supports a wide range of codecs and formats, making it one of the most versatile media-handling tools. With its extensive functionality, FFmpeg is widely used for tasks such as screen recording, video editing, and live streaming.

Key features of FFmpeg screen capture

• Cross-platform compatibility: FFmpeg operates seamlessly on various operating systems, including Windows and macOS, ensuring broad usability.
• Open-source architecture: As a free and open-source project, FFmpeg benefits from continuous enhancements by an active developer community.
• Extensive codec and format support: FFmpeg supports various audio and video codecs and formats, facilitating tasks like format conversion and streaming.
• Lightweight and efficient: Unlike many GUI-based tools, FFmpeg's command-line interface consumes minimal system resources, making it suitable for both high-performance and resource-constrained environments.
• Highly customizable: Users have granular control over parameters such as bitrate, resolution, frame rate, and audio settings, allowing for tailored media processing.

Why use FFmpeg for screen recording

Unlike traditional GUI-based screen recording tools, FFmpeg is lightweight and does not require a graphical interface, making it an efficient choice for capturing video. Users can fine-tune customizable settings like bitrate, codecs, and resolution to optimize recording quality. Its automation and scripting capabilities also enable batch processing, making it ideal for repetitive recording tasks or complex workflows.

Unlike traditional GUI-based screen recording tools, FFmpeg is lightweight and does not require a graphical interface, making it an efficient choice for capturing video. Users can fine-tune customizable settings like bitrate, codecs, and resolution to optimize recording quality. Its automation and scripting capabilities also enable batch processing, making it ideal for repetitive recording tasks or complex workflows.

Prerequisites and system requirements

• Hardware and OS compatibility

Supported operating systems (Windows and macOS).

• Installation instructions

1
1. Windows: Download the latest FFmpeg build from the FFmpeg official website. If you have Chocolatey installed, execute the following command in PowerShell to install FFmpeg: choco install ffmpeg
2
2. macOS: FFmpeg can be easily installed on macOS using Homebrew, a popular package manager for macOS that simplifies software installation and updates. Use the following command to install FFmpeg on Mac: brew install ffmpeg

• Verifying installation

After installation, you can check if FFmpeg is properly installed by running the following command in the terminal (Command Prompt for Windows, Terminal for macOS): ffmpeg -version

Getting started: How to record screen with FFmpeg

FFmpeg commands follow a structured format consisting of an input source, optional flags, and an output file. The general syntax is: ffmpeg [input options] -i [input source] [output options] output.mp4

In this command, -i specifies the input source: a screen, webcam, or video file. Additional flags control various aspects of the recording, such as format, resolution, and frame rate. Understanding these parameters allows you to customize screen recording settings for better quality and efficiency.

Key parameters explained

• -f x11grab (or equivalent for other OS) → Defines the capture format. On Windows, use -f dshow, on macOS, use -f avfoundation. This flag tells FFmpeg what kind of input source to expect.
• -s [width]x[height] → Specifies the screen resolution. For example, the -s 1920x1080 captures a Full HD screen, while -s 1280x720 records in HD. Choosing the right resolution affects video quality and file size.
• -i [input source] → Defines the input device or screen. Depending on your OS, this could be a screen name, device index, or file path. For example, on Windows, -i video="screen-capture-recorder" records the entire screen.
• -r [frame rate] → Sets the recording frame rate, such as -r 30 for 30 FPS or -r 60 for smoother motion. A higher frame rate improves quality but increases file size and CPU usage.
• Output format and codecs → The output format determines compatibility and compression efficiency. The H.264 codec (-c:v libx264) is widely used for MP4 files due to its excellent quality-to-size ratio. VP8/VP9 (-c:v libvpx) is a suitable alternative for WebM recordings.
• Simple screen recording  FFmpeg provides a lightweight and efficient way to record your screen on different operating systems. Below are platform-specific commands to start a basic screen recording using default settings. You can modify parameters to control resolution, frame rate, and output quality.
• Windows  FFmpeg uses the DirectShow (dshow) framework on Windows to capture video from the screen. The following command records the entire screen:ffmpeg -f dshow -i video="screen-capture-recorder" output.mp4   Here:-f dshow specifies the DirectShow input format.video="screen-capture-recorder" selects the screen recording device.output.mp4 saves the recording in MP4 format using default settings.
• macOS  FFmpeg relies on the AVFoundation framework to access screen and audio devices on macOS. Use the following command to start recording:ffmpeg -f avfoundation -i "<screen device index>:<audio device index>" output.mp4-f avfoundation sets the input format for macOS.<screen device index> is the screen source (usually 1 for the main display).<audio device index> is the microphone or system audio source.
• -f dshow specifies the DirectShow input format.
• video="screen-capture-recorder" selects the screen recording device.
• output.mp4 saves the recording in MP4 format using default settings.
• -f avfoundation sets the input format for macOS.
• <screen device index> is the screen source (usually 1 for the main display).
• <audio device index> is the microphone or system audio source.

FFmpeg's command-line interface is powerful but complex for non-technical users. For a simpler, no-code solution, consider CapCut, which offers an easy-to-use interface for screen recording and editing.

CapCut: An alternative to FFmpeg for recording without commands

CapCut is an all-in-one video editor that simplifies screen recording without the need for complex commands. Beyond screen recording, CapCut offers rich editing tools, including transitions, filters, and more. Even more surprisingly, CapCut recommends editing features based on recorded content, such as "Retouch" for recordings that include portraits. Whether you're creating tutorials, presentations, or social media content, CapCut ensures a smooth, hassle-free experience. Try CapCut today for easy screen recording and professional-quality editing!

Key features

• Screen recording: CapCut can capture the full screen, specific windows, or browser tabs with ease.
• Intelligent recommendation function: After recording, it will recommend editing features based on the content, such as auto-captions for generating subtitles.
• Diverse recording editing tools: You can easily trim, cut, add transitions, apply filters, and enhance recordings effortlessly.

Step guide to screen recording with CapCut

STEP 1

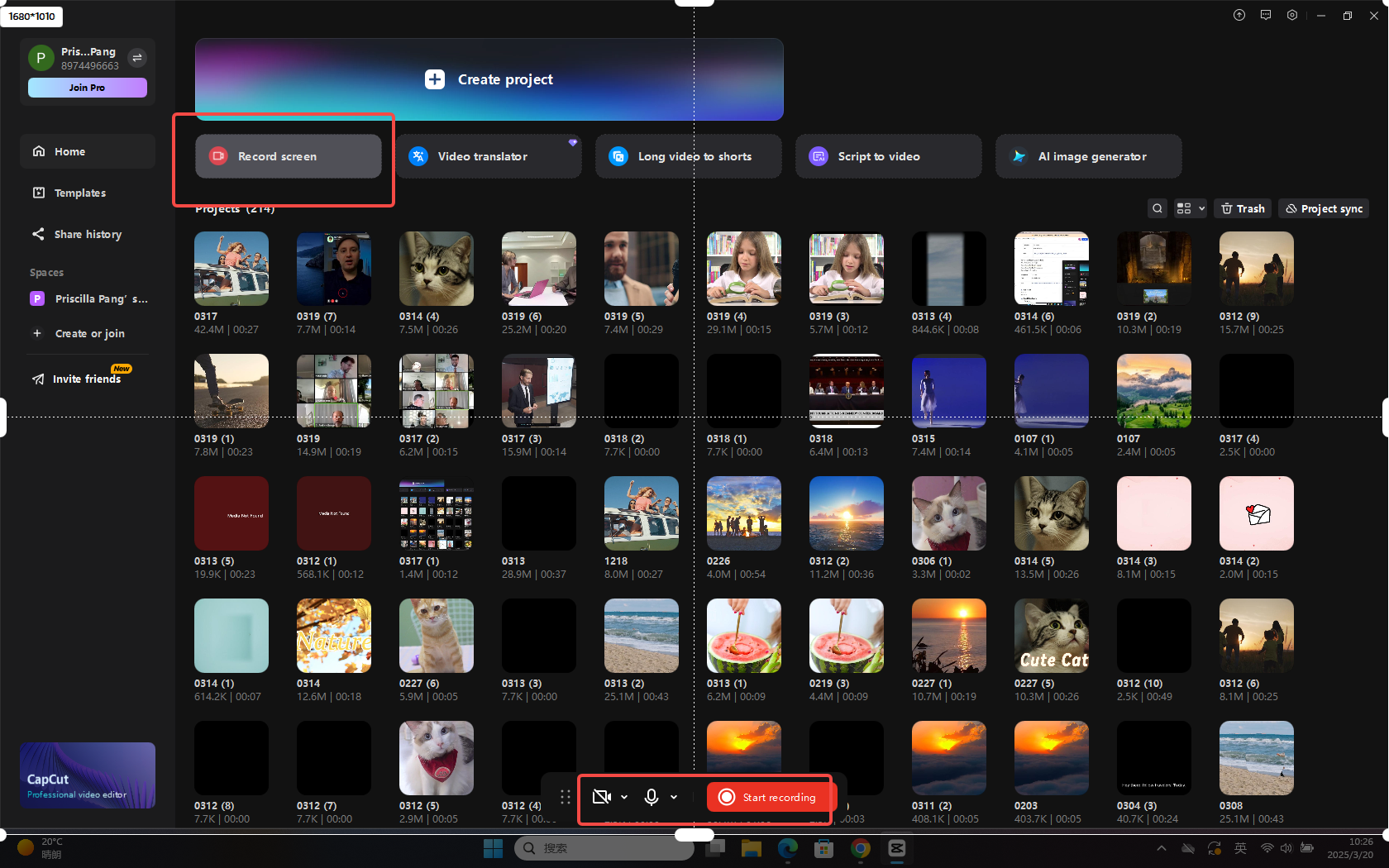

1. Start the screen recording

Launch CapCut and go to the "Screen recorder" option. Select your preferred recording mode—full screen, specific application window, or browser tab. If needed, enable the microphone and webcam for audio and video input. Click "Start recording" to begin and "Stop recording" once finished.

STEP 2

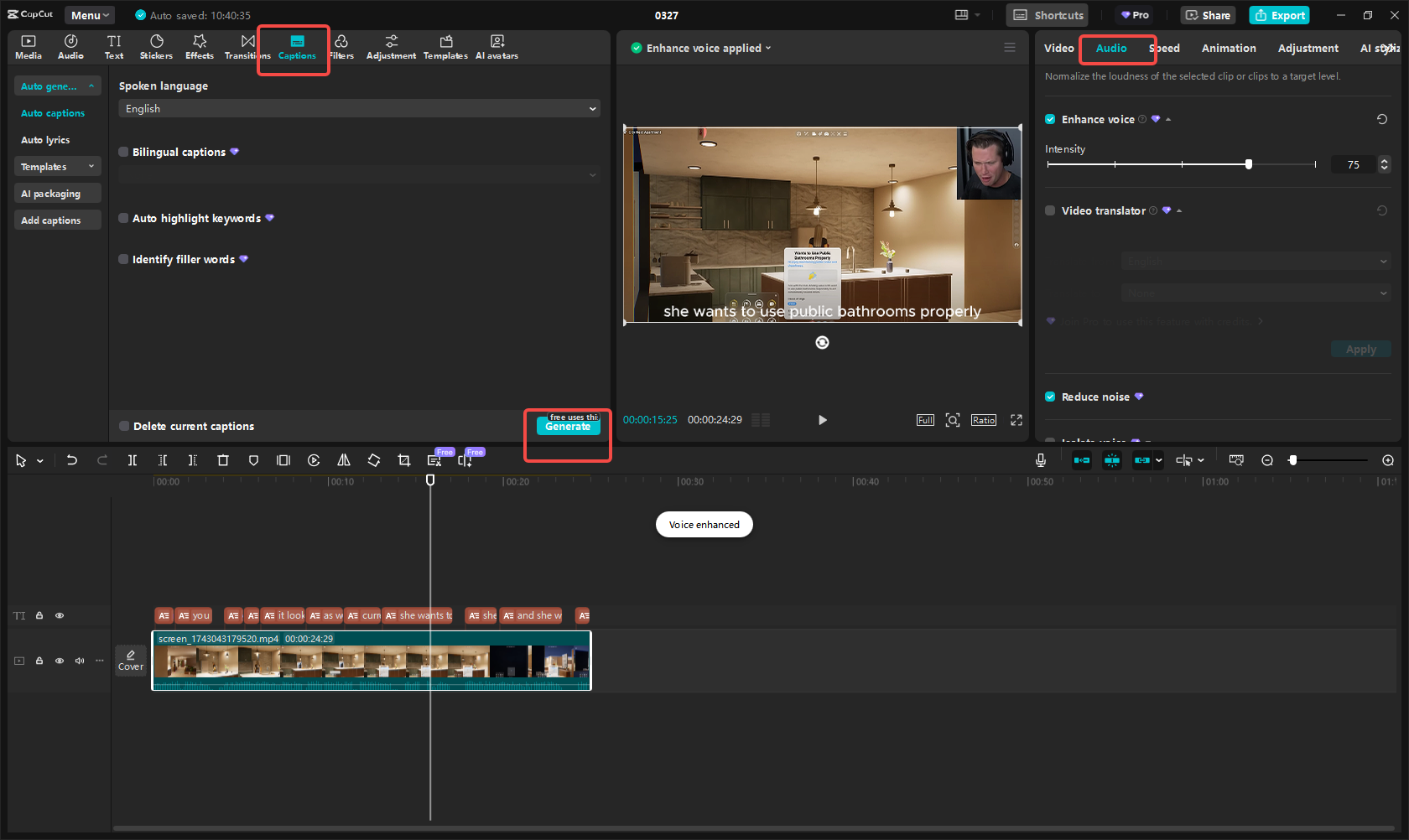

1. Edit and enhance your recording (Optional)

Click "Edit more" to refine your recording with CapCut’s powerful tools. Use "Auto captions" to generate subtitles automatically and customize them to match your style. Improve sound clarity with "Reduce noise" and "Enhance voice" features. Add filters, effects, and other enhancements to create a professional-looking video.

STEP 3

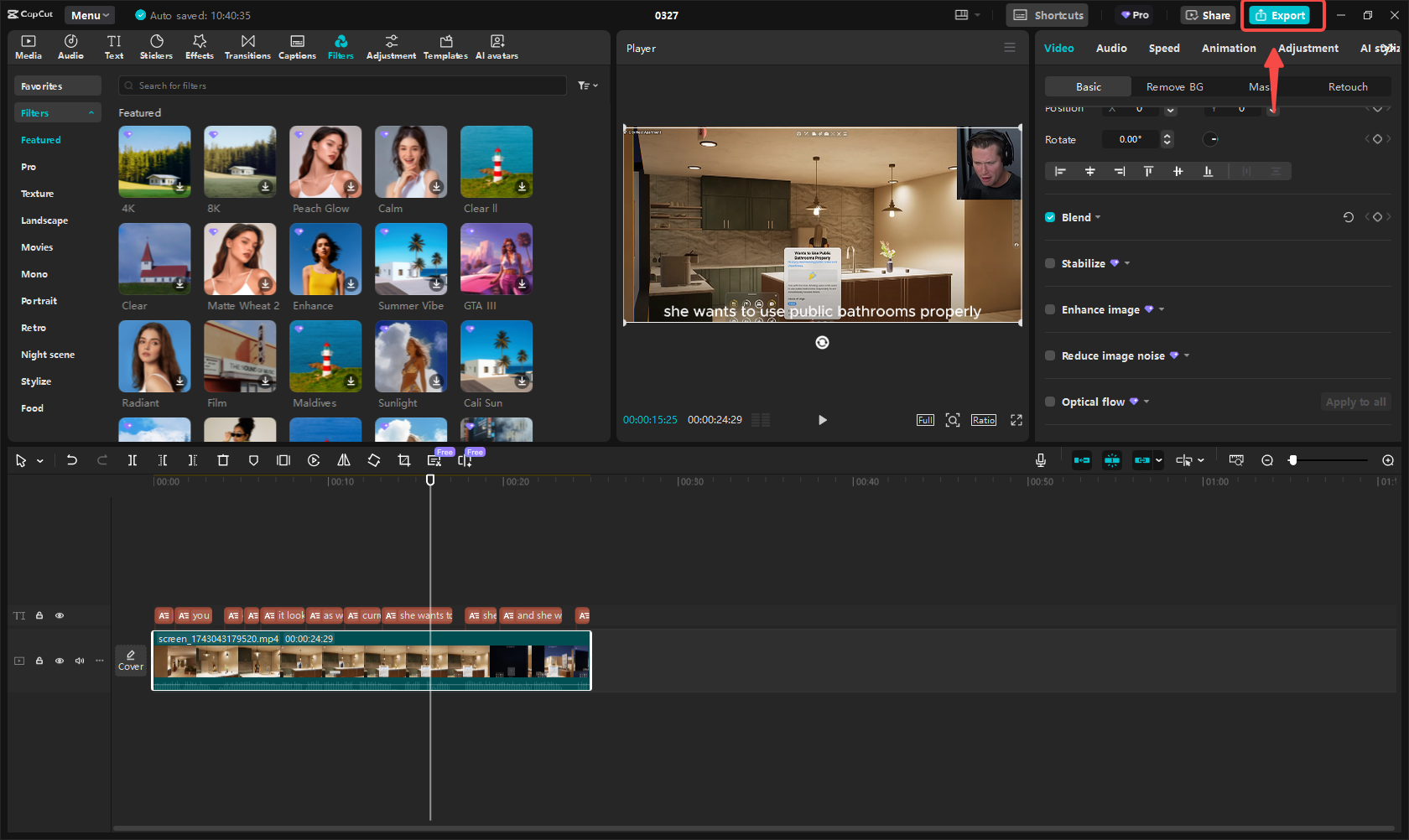

1. Export the video

Once editing is complete, click "Export" to select the preferred video format and resolution (up to 4K). Confirm the settings and click "Export" again to save your final video to your device.

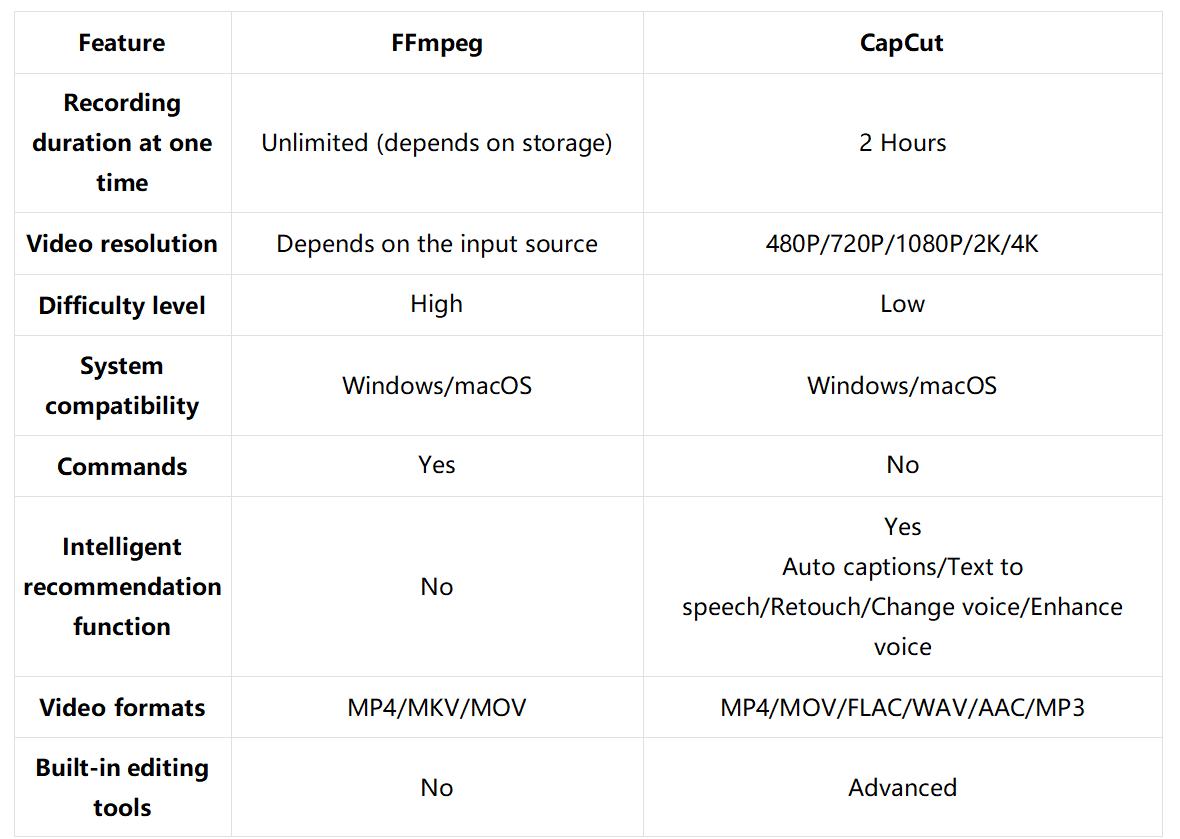

Comparison between FFmpeg and CapCut for recording

Troubleshooting and common pitfalls of FFmpeg screen recorder

• Common errors

If you encounter a "Device not found" error, ensure that the correct input device names are used by listing available devices with ffmpeg -list_devices true -f dshow -i dummy. A "Permission denied" error may appear on macOS due to system security settings—grant screen recording permissions in System Preferences > Security & Privacy > Screen Recording.

• Resolution and scaling errors

Incorrect screen capture dimensions can lead to distorted or cropped recordings. Use the -s [width]x[height] flag to manually specify the correct resolution. If the output appears stretched, verify that the aspect ratio matches the display settings.

• Performance optimization

High CPU usage can slow down your system while recording. To offload processing, enable hardware acceleration using—c:v h264_videotoolbox (macOS) or—c:v h264_nvenc (NVIDIA GPU). Lowering the resolution and frame rate with the -s and—r flags can also improve performance.

• Command parameter order

FFmpeg is sensitive to the order of command parameters. Ensure that input options (-f, -i) appear before output settings (e.g., -c:v, -b:v). Incorrect sequencing can lead to unexpected behavior or errors.

• Fixing audio sync issues

If recorded audio is out of sync with the video, use -async 1 to correct drift or manually adjust timestamps with -itsoffset. Try different audio sample rates (-ar 44100) to maintain consistent synchronization.

Conclusion

FFmpeg screen capture is a powerful tool for screen recording, offering flexibility through command-line controls. It allows users to define capture sources, adjust resolution, frame rate, and codecs, and even integrate audio. However, its complexity and lack of a graphical interface make it less user-friendly for beginners. CapCut is the better alternative for a seamless and feature-rich screen recording experience. It provides an intuitive interface, built-in editing tools, and AI-powered enhancements without requiring coding knowledge. Try CapCut today for effortless screen recording and professional-quality video editing.

FAQs

1
1. Why does FFmpeg use so much CPU?

FFmpeg processes video encoding and compression in real time, which can be CPU-intensive, especially at higher resolutions and bitrates. To reduce CPU usage, consider enabling hardware acceleration (e.g.,—c:v h264_nvenc for NVIDIA GPUs) or lowering the resolution and frame rate. Alternatively, CapCut offers a more optimized solution with efficient encoding and smooth performance.

2
1. Can FFmpeg stream to YouTube?

Yes, FFmpeg can stream directly to YouTube using RTMP. You need to obtain your YouTube stream key and use a command like this: ffmpeg -i input_source -deinterlace -vcodec libx264 -pix_fmt yuv420p -preset fast -r 30 -g 60 -b:v 2000k -bufsize 4000k -acodec libmp3lame -ar 44100 -b:a 712000 -f flv YouTube_RTMP_URL

3
1. How do I add a webcam overlay in FFmpeg?

You can overlay your webcam feed onto the screen recording using the overlay filter:ffmpeg -f v4l2 -framerate 25 -video_size 640x480 -i /dev/video0 webcam-cap.mp4. For those who prefer an easier way to add webcam overlays and enhance videos, CapCut is the easiest method; you can easily turn on screen and camera recording at the same time and use various tools to optimize recording, including auto-captions, retouch, and so on.
