Check Depth and Occlusion in a Photo Animation With CapCut

Check depth in a photo animation AI workflow with CapCut. Plan layer movement and inspect foreground edges for gaps before choosing your final clip.

Photo Depth and Occlusion title over a courtyard depth illustration
CapCut
CapCut
Oct 28, 2026

To check depth in an animated photo, compare how a nearby edge moves against a distant landmark. Then inspect the background that appears beside that edge. A convincing result needs both a clear difference in movement and a continuous surface where the foreground moves away.

For a photo animation AI workflow in CapCut, start with one short sideways move. Keep your original image unchanged so you can compare the scene before and after animation.

Choose a scene with readable depth

Look for three distances: something close to the camera, a main subject farther away and a background beyond it. Choose a foreground edge that overlaps a simple surface. A pillar against a plain wall makes missing background easier to spot than fine branches against a crowded street.

The worked example uses an original AI-generated courtyard scene with a terracotta pillar on the left, a blue chair in the middle and a cream wall behind it. The wall seam gives you a distant reference. Use your own scene photo or an image you have permission to animate.

Original synthetic courtyard with a nearby pillar a blue chair and a distant wall

Before animating, save a separate copy of the original. Identify the pillar's right edge, the chair back and the vertical wall seam. These are the three landmarks you will compare. Avoid changing the framing between tests because a new crop makes their movement harder to interpret.

Plan the relative movement

Imagine the camera sliding a little to the right. Nearby objects should shift left across the picture more than distant objects. The chair should move less than the pillar, while the wall moves least. This relative displacement is the useful depth cue.

The following layer diagram shows the relationship schematically. Its separated objects and arrows explain the plan; you do not need to cut the source image into these illustrated shapes to run the test.

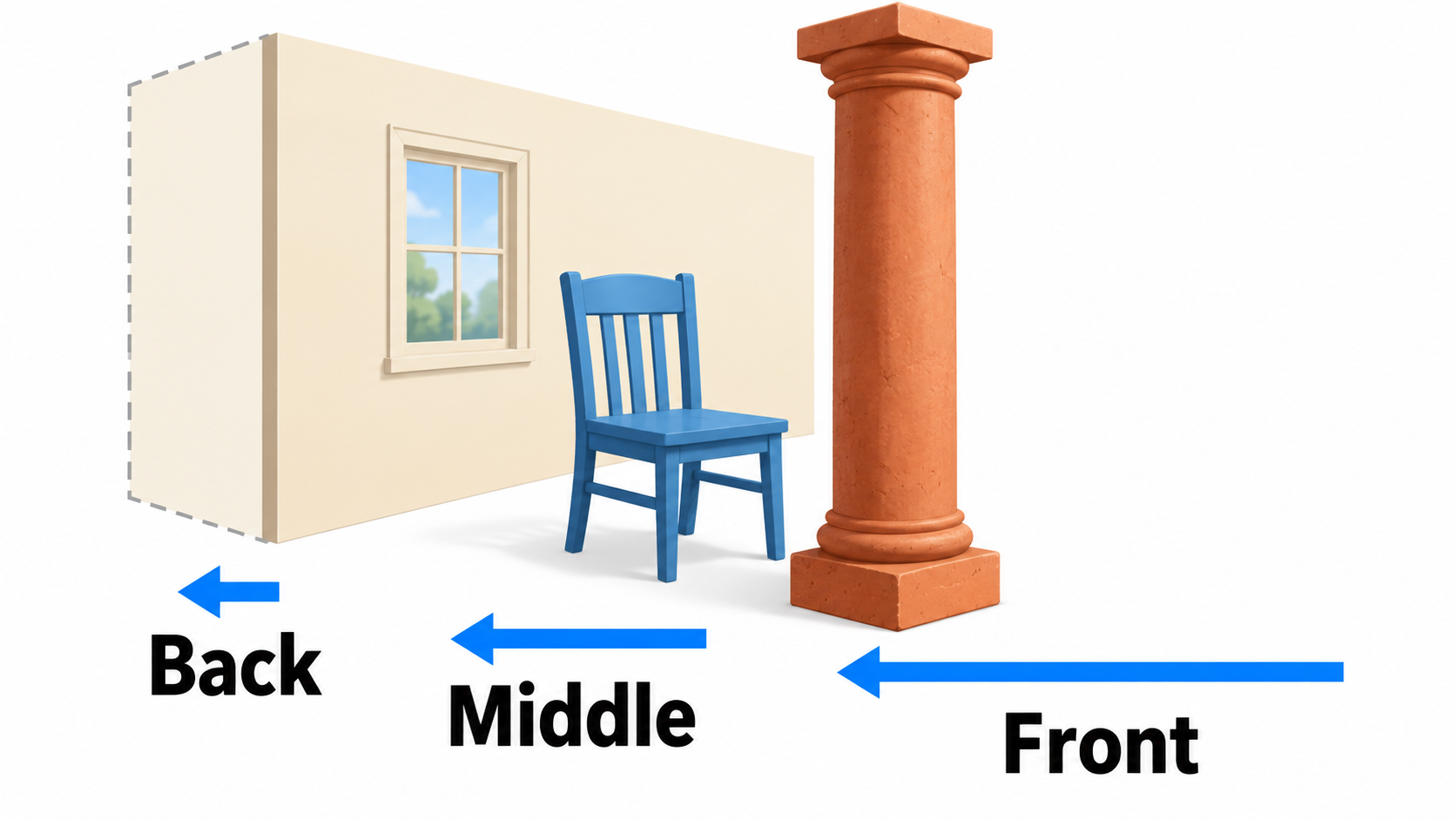

Front Middle and Back layers with progressively shorter leftward movement arrows

Write a compact plan before generating:

Scene part
Intended movement
Inspect afterward
Near pillar
Largest leftward shift
Right edge stays solid as wall is revealed
Blue chair
Smaller leftward shift
Legs remain distinct and attached
Far wall
Least movement
Seam remains a stable reference

“Make the photo cinematic” leaves the movement open. “Truck right gently while the pillar shifts more than the chair and the wall” gives you a specific relationship to check. A uniform zoom enlarges the whole image; use it for a push-in effect rather than treating it as evidence of this sideways depth relationship.

Run a short test in CapCut Web

On a Mac, open CapCut Web and choose Video Studio from the workspace. Use the plus icon beside the prompt to choose Upload from device, then select your scene image. Choose Video mode and open its settings. For this worked test, the settings were Video clip, Seedance 2.0 Mini, 720p, 16:9 and 5s.

Keep those settings fixed while comparing movement. Start from the image in CapCut AI Video Generator and describe a single lateral move. The following brief separates the camera action from the details that should stay still.

Camera: Animate the attached courtyard image with one slow camera truck to the right.

Scene: Keep the courtyard rigid and preserve the blue chair, terracotta pillar and cream plaster wall.

Depth: The close left pillar should shift left clearly more than the chair, while the distant wall seam moves only slightly. Reveal continuous cream wall behind the pillar edge.

Continuity: Keep chair legs rigid and separate, pot and leaves attached, sunlight and shadows stable.

Finish: No zoom, no orbit, no new objects, no cuts. End with a brief steady hold.

Submit the brief with the image attached. Once the clip is ready, review the whole movement before choosing a frame. An attractive opening can hide an edge failure later in the shot.

Compare the start and the widest reveal

The downloaded courtyard clip was 1280 × 720 at 24 fps. At the start, the pillar's right edge sits well to the left of the chair, with the wall seam behind the chair back. Use these as repeatable landmarks rather than judging the motion from the plant's fine leaves.

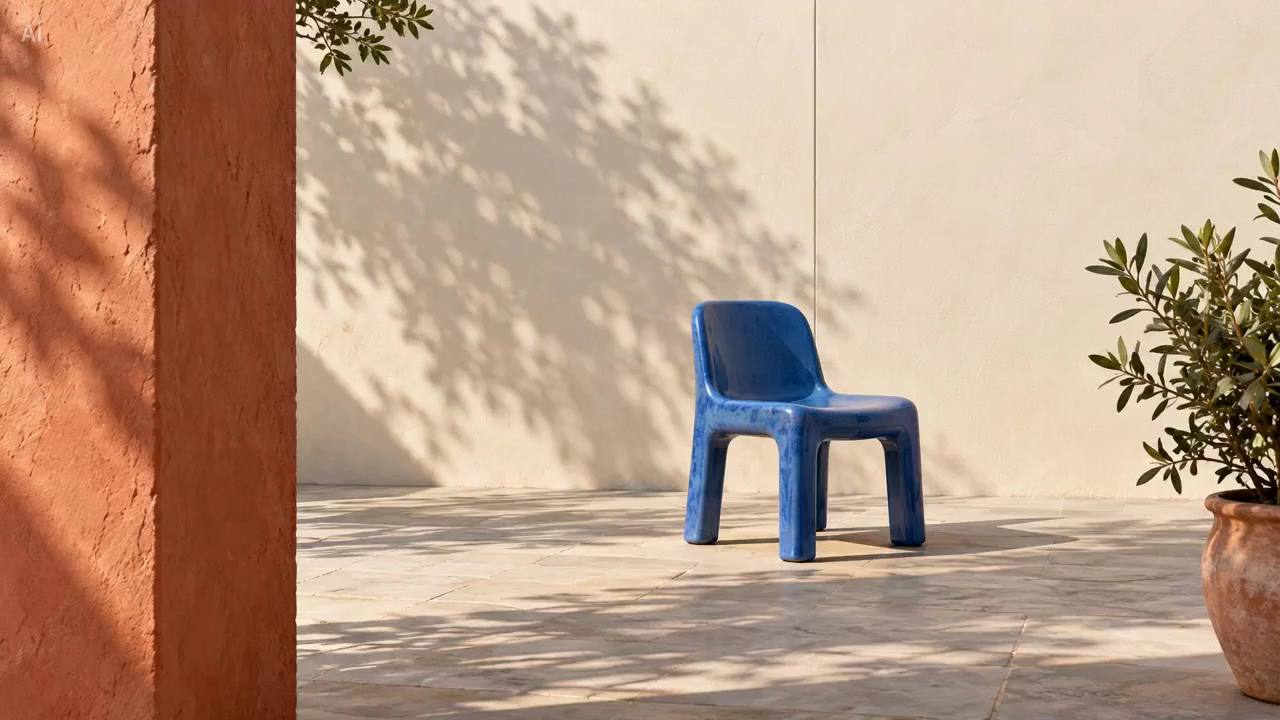

Opening frame of the actual CapCut courtyard animation

Across the five-second clip, approximate image measurements put the pillar edge 144 pixels farther left, the chair back 76 pixels farther left and the wall seam 59 pixels farther left. The foreground displacement is larger than the background displacement, which supports the intended depth cue. These measurements describe this clip rather than a physical camera distance.

The end frame shows more wall beside the pillar and more of the plant pot on the right. Compare the exposed strip with the original image and check that its texture connects to the surrounding surface.

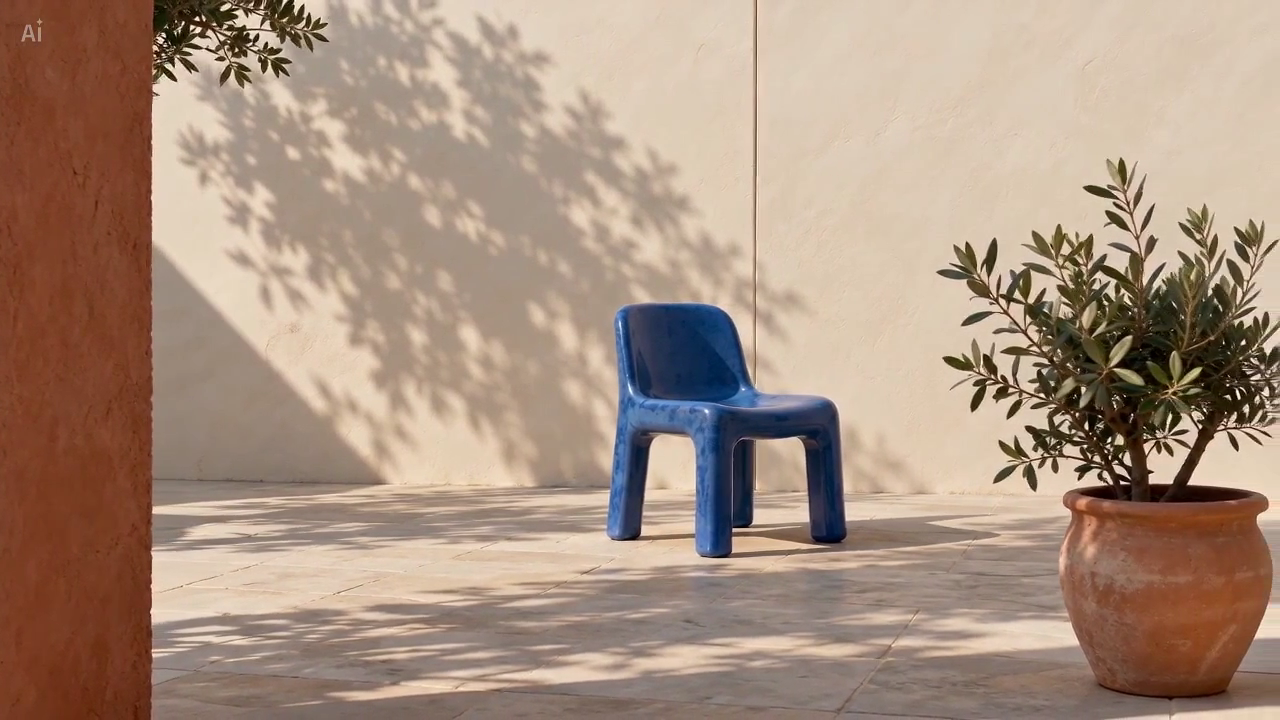

End frame of the actual CapCut courtyard animation showing the wider wall reveal

In the inspected opening, middle and ending frames, the wall continues beside the pillar without a visible empty slit. The chair legs remain distinct. The clip still moves at the end despite the requested hold, so check the ending separately when planning a transition. Slight changes in leaf shadows also make the rigid pillar and wall seam better measurement points than the shadow pattern.

After reviewing the result, select the video on the Video Studio canvas and use its downward-arrow download control. Check the downloaded file as well as the preview, especially the same edge at the widest reveal.

Inspect the newly revealed background

Occlusion is the part of the scene hidden behind another object. When the foreground shifts away, the hidden area needs to become a plausible continuation of the wall or floor. Judge that revealed strip separately from the overall camera movement.

This conceptual close-up shows the difference to look for: a bare gap beside the pillar versus wall texture continuing behind it.

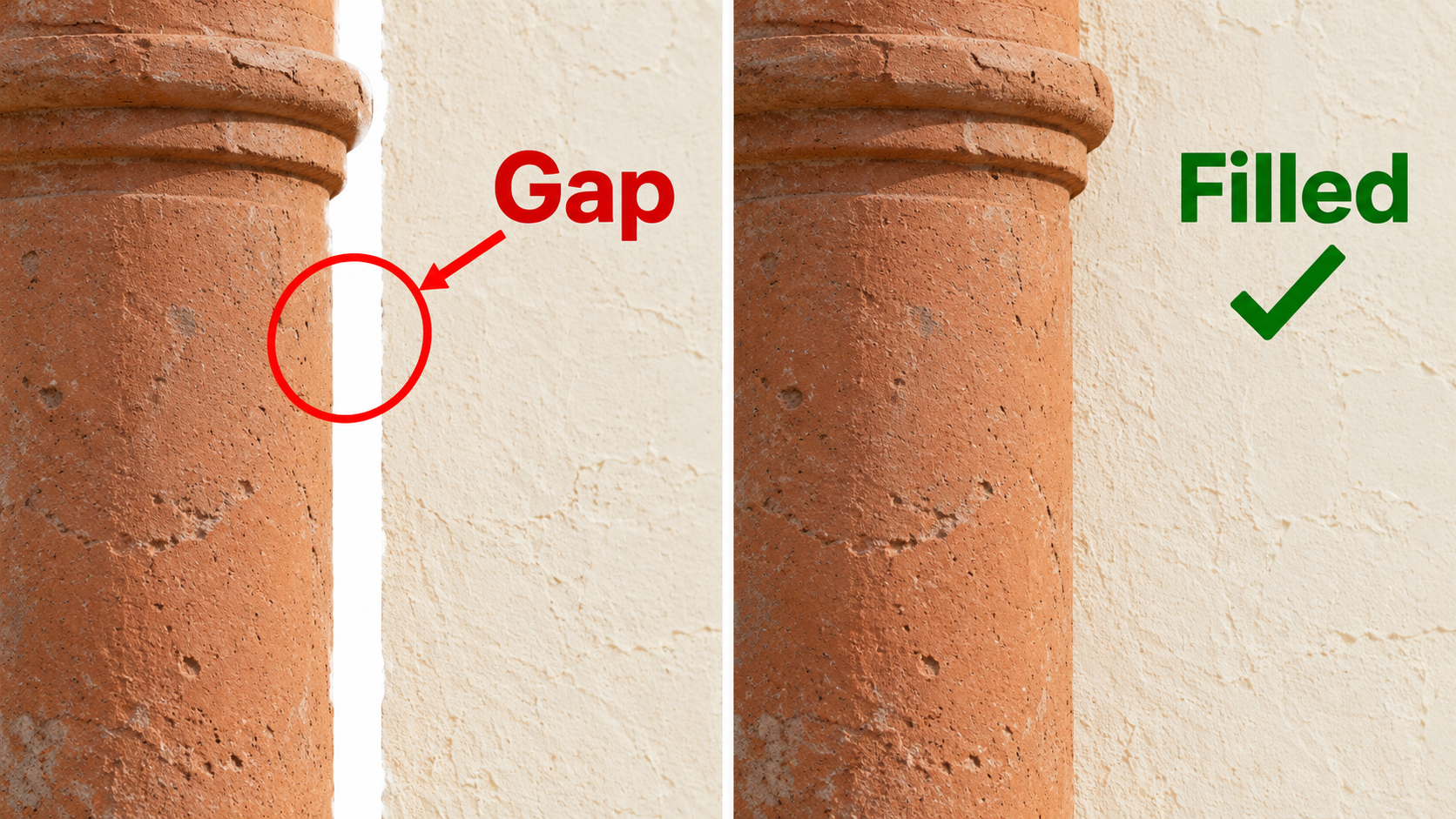

Conceptual Gap and Filled examples showing missing versus continuous wall beside a pillar

Pause near the widest reveal and step through the neighboring frames. Follow the pillar's edge from top to bottom. Look for a bright slit, a dark wedge, repeated texture that appears to stretch or a fragment of pillar stuck to the wall. A moving shadow can be plausible; a wall seam bending around the pillar is a reason to inspect more closely.

Use a short location record rather than writing “the animation looks wrong.” For example: “Pillar right edge near the floor at the widest reveal; cream surface stretches into a bright strip.” Save the time and nearby frames so a revised clip can be checked at the same point.

Make one targeted correction

If everything slides together, make the depth relationship more explicit: ask for a clearer difference between the near pillar and distant wall while keeping the chair still within the scene. Compare the same three landmarks again.

If the relative movement reads well but the revealed strip breaks, reduce the sideways travel and keep the rest of the brief unchanged. Check whether the same edge remains continuous across the smaller reveal. If the failure persists, choose a source with a simpler background or reduce the movement further before building a longer sequence.

For a manually separated layer animation, extend the background beneath the foreground mask before moving the layer. A photo contains no pixels for what was hidden; leave enough underlying wall or floor to cover the largest reveal. Inspect any filled area for repeated seams and texture changes. This is a general compositing repair, separate from the CapCut Web generation steps above.

Before using the clip, replay it at normal speed and inspect the largest reveal at full size. Confirm that the foreground and background move differently, the main subject keeps its shape and the wall remains continuous. Keep the original image and the brief with the chosen result. For your next editing task, browse the AI video creation guides.

FAQ

Does a slow zoom prove that a photo has depth?

A slow zoom changes framing. To judge sideways depth, compare a near edge with a far landmark and look for different displacement between them.

Do I need to separate every object into a layer?

For the image-guided CapCut Web test above, you attach one image and describe the motion. The layer plan helps you judge the output. A manual layered edit requires separate elements and background coverage beneath their masks.

Where should I look for a gap first?

Start at the foreground edge where the largest area of background becomes visible. Check nearby frames as well as the peak reveal because an edge can flicker briefly and then recover.

Should I use a larger camera move to make the depth clearer?

Begin with a small move that keeps the subject readable. If the layers appear to move together, clarify their relative movement. If the newly exposed background breaks, reduce the travel and inspect the same edge again.
